Send InquiryDrum Lens

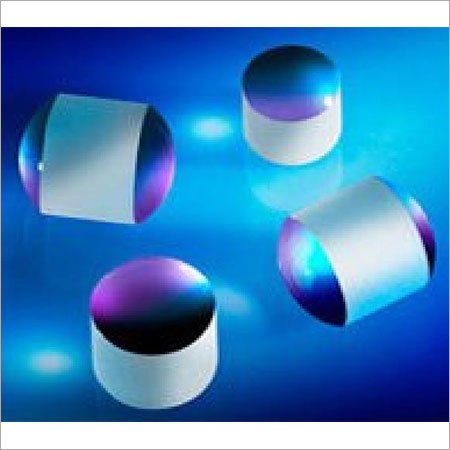

Drum Lens
Product Code : 30
Price And Quantity
- Minimum Order Quantity
- 10 Piece
Product Specifications
- Material
- N-BK7
- Size
- subject to customer spec. or drawing
Product Description
Optical Drum Lens are glass spheres, ground down axially to provide a mounting surface. The ground circumference D simplifies handling issues typically associated with ball lenses. Ideal for optical transmission in fiber communications. Type B Drum lenses have a polished plano-surface for direct fiber contact and perform as elongated PCX lenses.
Specifications
| Material: | N-BK7, grade A fine annealed |
| Diameter: | +0/-0.20mm |
| Clear aperture: | >80% of diameter |
| Radius: | +0/-0.0015mm |
| Length: | +/-0.03mm |
| Centration: | < 3 arc minutes |
| Surface quality: | 60-40 S/D |
| Irregularity: | /4@632.8nm |
| Coating: | With or without AR coating |
| Bevel: | < 0.3mm x 45 |
Trade Information
- FOB Port
- Fuzhou, China
- Supply Ability
- 5,000pcs Per Month
- Delivery Time
- 5 Week
- Sample Available
- Yes
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Packaging Details
- Provide our standard package.
- Main Domestic Market
- All India
- Certifications
- N/A
